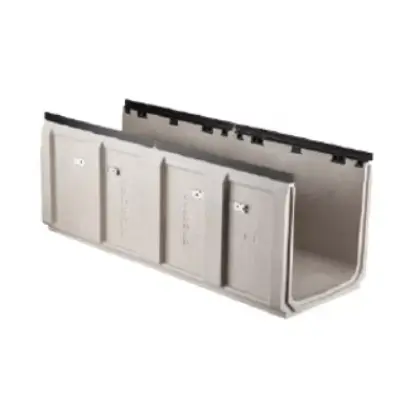

MEADRAIN® EN
- Model: EN3000
- Heavy Duty Drainage
- Airport Drainage
MEADRAIN® Supreme channels are lightweight, robust, and resistant. They withstand heavy loads like aircraft taxiing and container transport with cast iron edges in polymer concrete and ductile iron gratings. Smooth inner walls boost drainage. Chemical resistance and sealed channels protect groundwater.
Specifications
| Model No. | EN3000 |
| Opening | 300 mm |
| Total Width | 354 mm |
| Total Height | 490 mm |
| Length | 1000 mm |
| Total Weight | 67.6-115.2 kg/running m |
| Gratings | Ductile iron |
| Grating Fixings | PROFIX®/bolted |
| Loading Class | F 900, Type M |
For comprehensive information, please see the document available for download below.
Related Products
MEA® Traffic D/DM
The channel unit has a clear width of 100 mm and total width of 154 mm, with total height adjustable from 250 to 350 mm. It supports linear fall, stepped fall (2.5%), and no fall. Featuring an integral outlet connector, it meets loading classes A15 to F900 for versatile drainage applications.

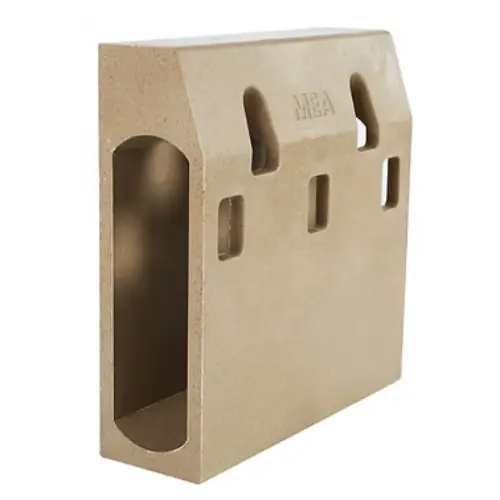

MEA® Kerb
MEAKERB channel series combine drainage with kerbs. The product is suitable for all linear drainage places in city, rural and urban roads such as expressway, landscape road, railway station, curved traffic pavement, etc.

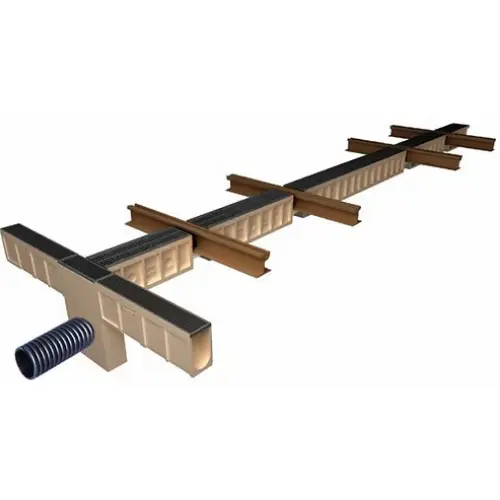

MEA® City Tram
Drainage of rail systems is a substantial component of the road safety of tramways. Insufficient drainage of the wheel rim is primarily responsible for a build-up of dirt particles.MEADRAIN RAIL connecting elements help to keep the rail system dry and clean and thus are an important contribution to the value of municipal infrastructure services.

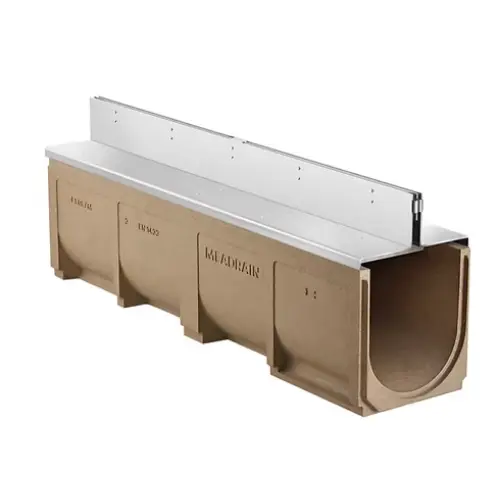

MEA® TopSlot
The slot height of the Topslot grating cover can be customized based on ground conditions. To meet landscaping and design needs, options include middle slot, side slot, single slot, multiple slot, or arc slot covers. Additionally, the cover thickness can be customized according to the project’s loading class and requirements, available in 1.2mm, 2mm, and 3mm.
