End Outlet with Outlet Box
- Model: MBC125.60B.159.EOB
- Weld-Free Joints
- Edge Infill Stability
Designed for durability, hygiene, and efficiency, our modular drainage system features V-Shaped bottoms for enhanced cleaning, slip-resistant gratings, weld-free joints, and multiple surface treatments. With customizable options and quick installation, it ensures reliable performance in demanding environments.

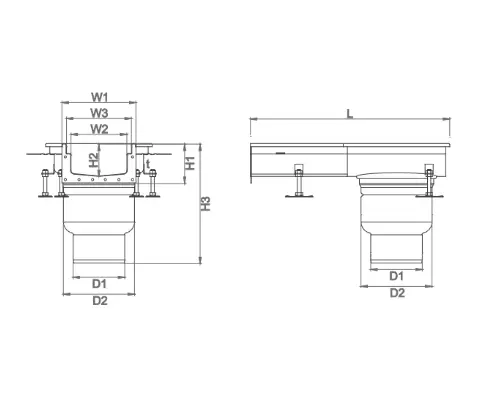

Specifications
| Model No. | MBC125.60B.159.EOB |
| L | 614 mm |
| H1 | 81.5 mm |
| H2 | 60 mm |
| H3 | 324 mm |
| W1 | 153 mm |
| W2 | 97 mm |
| W3 | 125 mm |
| D1 | 108/76 |
| D2 | 159 |
| t | 1.5 mm |
| Water Trap | WT157 |
| Filter | B167 |
| Material | 304/316L |
For comprehensive information, please see the document available for download below.
